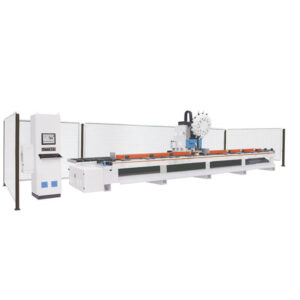

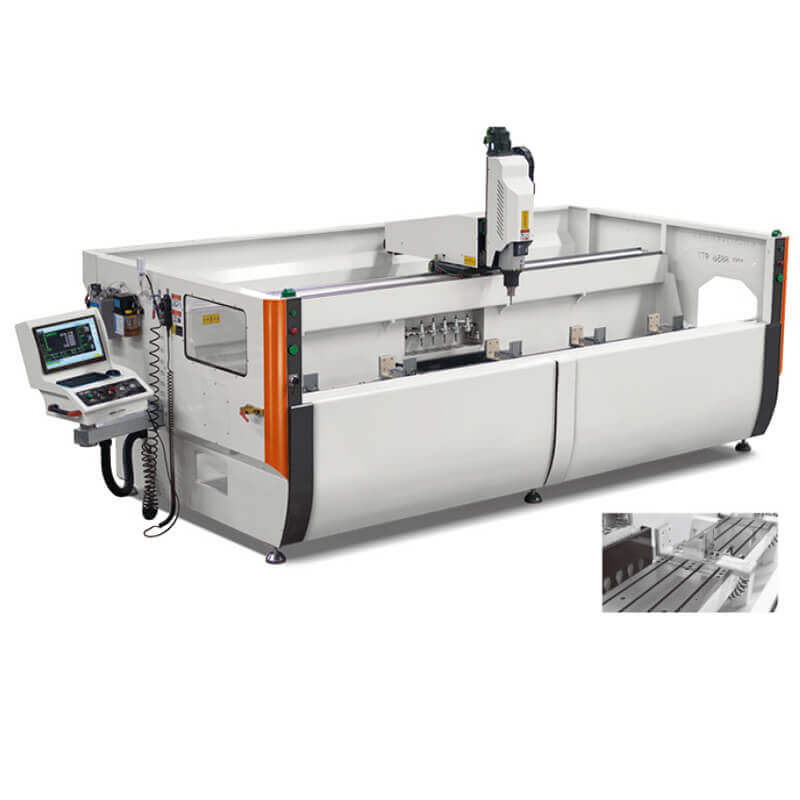

3 + 1 Axis CNC Profile Machining Center
- Shipping Port: Qingdao Port / According to your request
- Payment: T/T, ACH, Fedwire, SEPA, PayPal, Credit Card
- Packing: Standard Packing
- Customized: Supported
3 + 1 Axis CNC Profile Machining Center Description
✅ The 3 + 1 Axis CNC Profile Machining Center is designed for high-efficiency machining of aluminum profiles, enabling precise processing of various grooves, drilling, and complex hole patterns.
✅ Equipped with an imported high-speed motorized spindle, the machine offers stable rotation, low noise, and powerful cutting performance—ideal for demanding applications in aluminium fabrication.
✅ This 3 + 1 Axis CNC Profile Machining Center features a 5-tool automatic tool changer, allowing smooth and intelligent tool switching to meet multi-step processing needs with minimal downtime.
✅ The manipulator motion is servo motor-driven, ensuring responsive, accurate movements and enhanced reliability during operation.
✅ For consistent feeding precision, the machine adopts an imported high-precision gear rack transmission system, enabling smooth and accurate axis movement.
✅ Additionally, 3 + 1 Axis CNC Profile Machining Center utilizes an imported direct-drive motor connected directly to the saw blade. This design provides stable, clean, and high-accuracy cutting, ensuring high-quality results for every profile processed.
3 + 1 Axis CNC Profile Machining Center Parameter
| Voltage | 380V/50HZ |
|---|---|
| Input power | 11KW |
| Air resource pressure | 0.5-0.8Mpa |
| X-axis travel | 3200mm |
| X-axis speed | 0-60m/min |
| Y-axis travel | 400mm |
| Y-axis speed | 0-15m/min |
| Z-axis travel | 400mm |
| Z-axis speed | 0-15m/min |
| Main spindle rotary | 18000-24000r/min |
| Main spindle power | 9KW |
| Working table position | -90° 0° 90° |
| Processing range | 380x380x3200mm |
| Overall dimension | 4400mm x 1500mm x1800mm |
